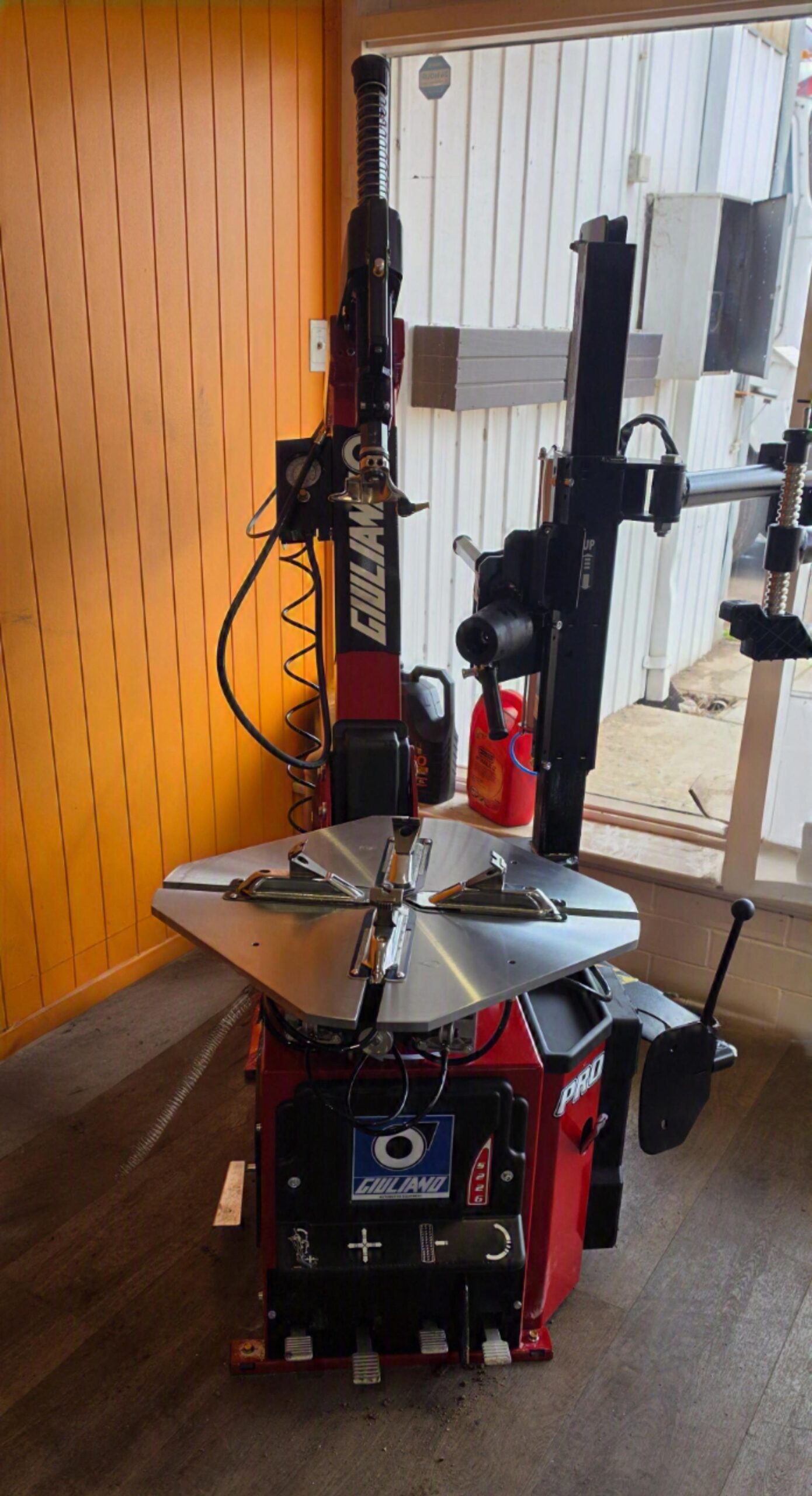

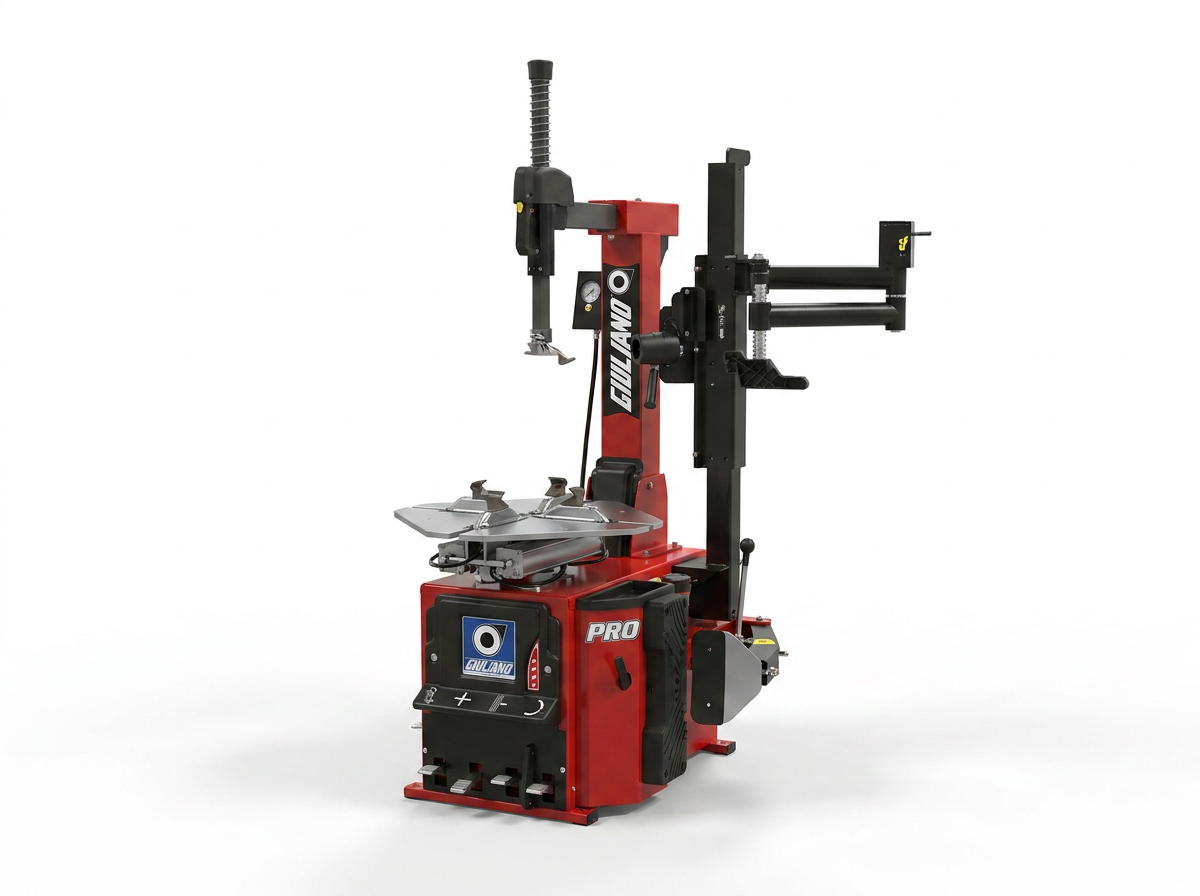

Giuliano S226 Pro
The Giuliano S226 Pro is a professional automatic tilt back tyre changer built for independent workshops and tyre stores handling the full range of modern passenger car tyres.
The HPF dual assist arm is included as standard — not an optional extra — making it ready out of the box for low-profile and run-flat tyres without the risk of rim or sidewall damage.
- Rim clamping range: 10″–24″
- Max tyre diameter: 1,100 mm (43″)
- Bead breaker force: 30,800 N at 10 Bar
- 240V single phase | CE certified
- Dual assist arm included as standard
Supplied with professional installation, operator training, and genuine manufacturer warranty.
Servicing workshops across SA, NT, and WA.
Description
Description
Giuliano S226 Pro — Automatic Tilt Back Tyre Changer with Dual Assist Arm
The Giuliano S226 Pro is one of the most capable and practical automatic tyre changers available for independent workshops and tyre stores looking to handle a wide range of passenger car tyres with confidence and consistency. Designed with a reinforced chassis, a tilting head for standard and low-profile tyre service, and a dual assist arm included as standard, this machine punches well above its weight class — and it backs that up with CE certification and the build quality you expect from the Giuliano name.
Who the Giuliano S226 Pro Is Built For
The Giuliano S226 Pro is the right tool for general mechanics, independent automotive workshops, and new tyre store start-ups that need reliable, professional-grade tyre changing capability without unnecessary complexity.
If your workshop is seeing a growing volume of modern passenger cars — vehicles increasingly fitted with low-profile tyres that can be damaged easily on lesser machines — the S226 Pro was designed with that in mind. Its tilting head allows the operator to work on both standard and low-profile tyres, reducing the risk of rim and tyre damage that can cost you far more than the machine itself.
It is equally well-suited to workshops that want a machine that works from day one without the need for optional extras to handle everyday jobs. The dual assist arm — a feature some manufacturers charge additional fees for — comes included as standard on the S226 Pro.
Key Features and Specifications
The Giuliano S226 Pro delivers a strong combination of performance and reliability in a machine designed for the demands of daily workshop use.
- Rim clamping range (external): 10″ to 24″, with optional configurations available
- Maximum tyre diameter: 1,100 mm (43″)
- Maximum tyre width: 380 mm (15″)
- Bead breaker force at 10 Bar: 30,800 N — double-effect cylinder Ø200 mm
- Service air pressure: 8 Bar (116 PSI)
- Working air pressure: 3.5 Bar (50 PSI)
- Motor power: (240V, single phase)
- Rotation speed: 7 rpm
- Overall length with arm: approximately 1,190 mm
- Overall height with column up: approximately 1,800 mm
- Platform wall thickness: 12 mm — reinforced for durability
- CE certified
Why the Dual Assist Arm Matters
On a standard tyre changer, fitting and removing modern low-profile and run-flat tyres can be slow, physically demanding, and carries a genuine risk of damaging expensive rims. The HPF dual assist arm on the Giuliano S226 Pro addresses this directly.
Rather than relying on a single assist arm that forces the operator to manually manage tyre tension, the dual assist arm configuration provides two points of support during fitting and removal. The result is a cleaner, more controlled operation — faster cycle times, less operator fatigue, and a significantly lower chance of the tyre or rim being marked or damaged during the process.
This is not an optional upgrade on the S226 Pro. It comes as standard, so the machine is ready to handle the tyres your customers are actually bringing in — not just the easy ones.
Handling Low-Profile Tyres
Low-profile tyres are now standard fitment across a wide range of modern passenger vehicles, and that trend is not reversing. A tyre changer that cannot handle them safely is a machine that is already falling behind.
The Giuliano S226 Pro‘s tilting head design is the key to working safely with low-profile tyres. The head tilts back during fitting and removal, reducing the amount of force required to clear the rim flange and eliminating the tight, rigid contact that damages sidewalls on conventional machines. Combined with the dual assist arm, this makes the S226 Pro a reliable daily driver for the full range of tyres your workshop will encounter.
Supplied and supported by HDL Auto Equip
When you purchase the Giuliano S226 Pro through HDL Auto Equip, you are not just buying a machine — you are getting the support to put it to work properly from day one.
HDL Auto Equip, led by Mark Gough with more than 30 years of hands-on automotive industry experience, supplies and installs workshop equipment across South Australia, the Northern Territory, and Western Australia. Every machine we sell includes professional installation and hands-on operator training so your team understands the equipment and can use it safely and efficiently from the start.
All equipment is covered by a genuine manufacturer warranty, and if you have questions or need assistance after the sale, you are dealing directly with someone who knows the equipment — not a call centre.
