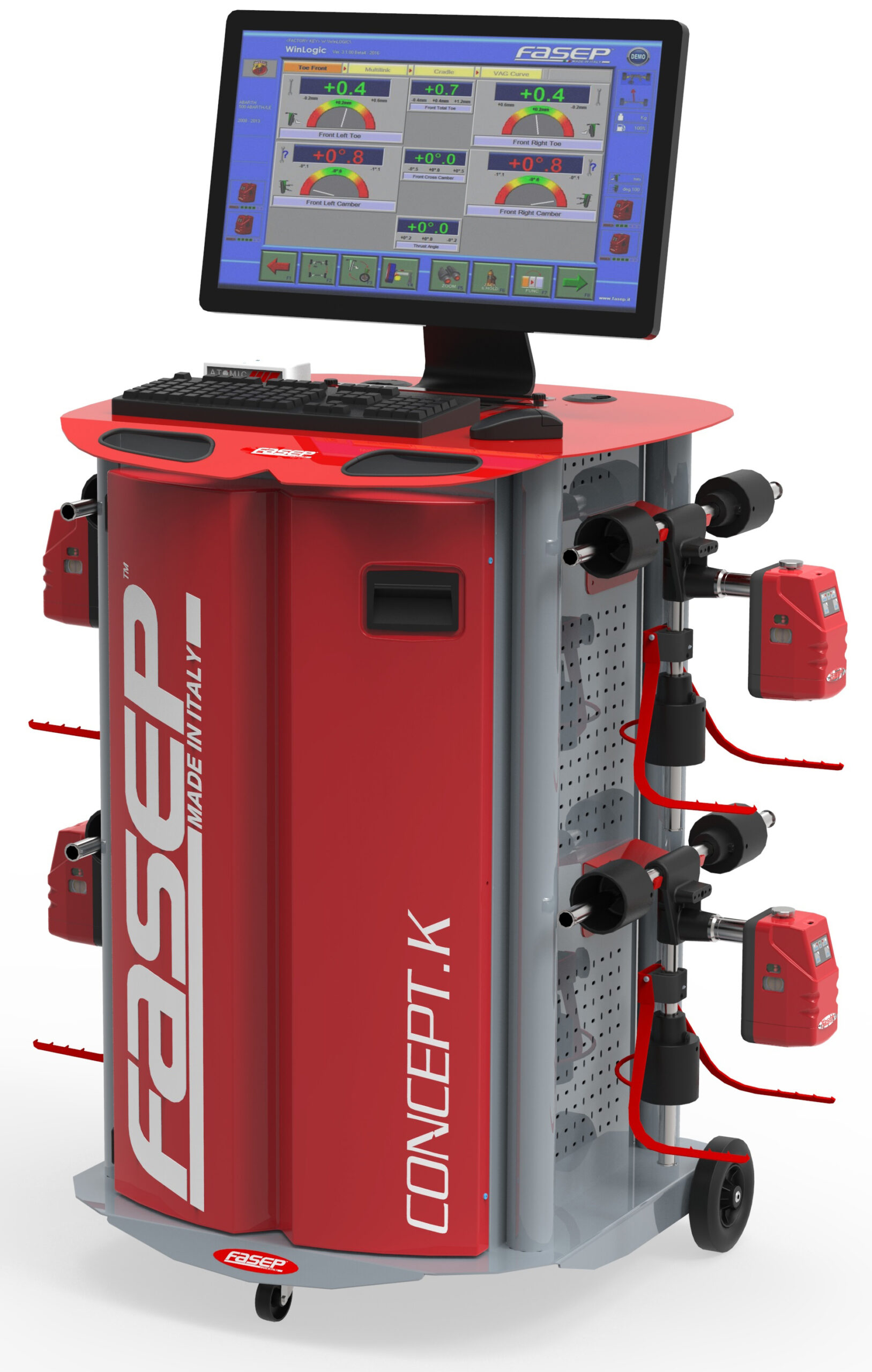

VCO K2 1 scaled

FASEP VCO-K2 Wheel Aligner

The VCO-K2 brings FASEP’s 50-plus years of Italian engineering to a sleek, trolley-based wheel alignment station that keeps every accessory exactly where you need it. Dual-inclinometer infrared sensors, automatic track-width measurement, and the intuitive WinLOGIC software let technicians deliver OE-level accuracy in minutes – without wrestling with cables or guessing rim offsets.

Key Reasons Workshops Choose VCO-K2

  1. All-in-one mobile trolley – sensors, PC, printer, clamps and a 27-inch display ride on free-swivelling castors: roll it to any bay in seconds.

  2. WINTRAX 2 cordless sensors – infrared heads with 30-hour battery life, 10 radio channels (no cross-talk if you run multiple aligners).

  3. ATM™ Automatic Track Measurement – laser bar captures front & rear track widths as the car rolls through; no manual gauges, no tyre-width entry.

  4. Contact Clamps (10-26″) – grip tyres (not rims), so there’s no run-out compensation and no risk of scratching alloys.

  5. WinLOGIC software – Windows-based, two-button navigation, live Multilink display (toe + camber + caster), 32 000-vehicle databank with cloud updates.

  6. Made in Italy since 1969 – premium build, strict 0.15 mm orthogonality tolerance on every clamp for repeatable results.

Technical Specifications

Item VCO-K2
Power 200-240 V, 50-60 Hz, ≤ 500 W
Display 27″ LCD (trolley-mounted)
PC Windows-based, USB interface to sensors
Measuring Accuracy 0.01° / 0.1 mm
Wheel Ø (Cars) 10-26″ (Trucks up to 42″ with option)
Sensor Battery Reserve 30 h continuous use
Measuring Range Total toe ±10°, Camber ±12°, Caster ±30°, Lock ±40°
Turntable Capacity Std 750 kg • Heavy-duty 1000 kg • Electronic 3500 kg
Trolley Swivel castors, integrated battery charger & sensor docks
Clamps Contact type, tyre mount, no adapters needed

Measurement Programmes (Cars & Vans)

  • Total & single toe

  • Thrust angle (auto compensation)

  • Camber, Caster (±20°/±10° live adjustment)

  • King-pin / SAI

  • Multilink live (Toe + Camber + Caster)

  • Included angle, Set-back

  • Steering lock angle (with electronic turntables)

  • Run-out & wheel-off-centre compensation (automatic)

What’s in the Box

  • VCO-K2 trolley with 27″ monitor & industrial PC

  • 4× WINTRAX 2 wireless sensor heads

  • 4× Contact Clamps (10-26″) with quick docks

  • Laser ATM track-width gauge

  • Integrated multi-slot battery charger

  • A4 printer (region-dependent)

  • WinLOGIC software licence & 12-month data updates

  • Rugged sensor and clamp storage bays

Popular options: Heavy-duty turntables, truck clamp set (10-42″), MS WinREFLEX sensors, additional radio channels.

pdf.gif Brochure

Category:

Description

▼

Description

▼

Faster Set-ups, Happier Technicians, Profitable Alignments

▼

Rolling a VCO-K2 into position takes seconds; loading vehicle data, even less. Automatic track measurement means you skip manual gauges entirely, while live Multilink read-outs let you dial in modern suspensions on the first try. With no rim contact and no run-out routine, you cut total job time and protect customer wheels.

Upgrade Advantages

  • Speed: From vehicle roll-in to final print-out in under 5 minutes for most passenger cars.

  • Accuracy: Dual-inclinometer sensors equal 3D-level precision without the bulky camera towers.

  • Versatility: Cars, SUVs, twin-wheel vans and light trucks all align on a single platform.

  • Data-driven sales: Pre-inspection and post-repair reports build trust and upsell suspension work.

Ready to See the VCO-K2 in Action?

Contact us for a live demo or pricing and discover how FASEP’s flagship aligner can streamline your workflow and boost alignment revenue.
