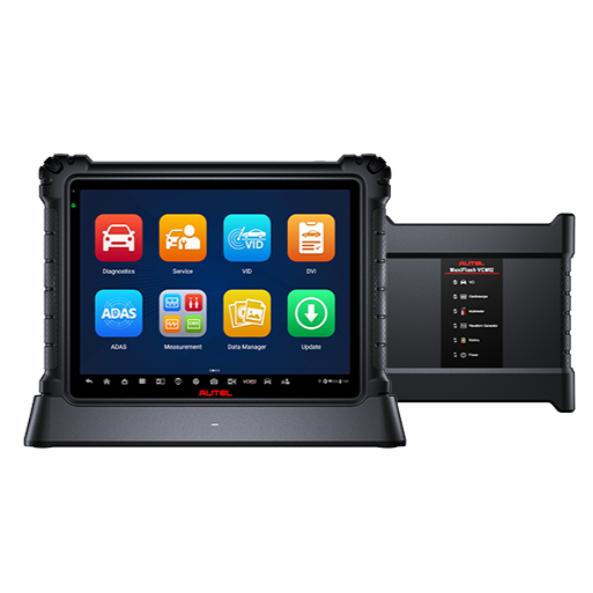

Autel Maxisys Ultra S2
The MaxiSys Ultra S2 is Autel’s new flagship diagnostic tablet, built to push efficiency, accuracy and ease-of-use even further than the award-winning Ultra. A larger 13.7-inch anti-glare display, lightning-fast 2.7 GHz octa-core processor and a huge 512 GB SSD mean you can open more data, apps and wiring diagrams at once—without delays. Add the all-new 6-in-1 VCMI 2 (4-channel oscilloscope, multimeter, waveform generator, CAN-BUS tester and J-2534 pass-thru programmer) and you have near-OE capability in a single, compact kit.
Key Benefits at a Glance
-
Bigger, brighter workspace – 13.7″ 2176 × 1600 anti-glare touchscreen shows more PIDs, wiring and test results in one view.
-
Twice the storage, faster brain – 12 GB RAM + 512 GB SSD and an 8-core 2.7 GHz CPU slash loading times and speed multi-tasking.
-
Next-gen connectivity – Dual-band Wi-Fi 6 and Bluetooth for low-latency DoIP / CAN-FD diagnostics and remote programming.
-
Dynamic Topology 3.0 – colour-coded network maps, live ECU ping tests and one-tap module location diagrams.
-
Hands-free voice control (“Hey MAX”) – start scans, run active tests or open service menus without touching the screen.
-
Advanced EV & Parasitic-draw tests – AC/DC charging, high-voltage component checks, interlock loop, swing-tests and more.
Hardware Specifications
| Item | MaxiSys Ultra S2 |
|---|---|
| CPU | 2.7 GHz 8-core |
| RAM / Storage | 12 GB RAM / 512 GB SSD |
| Display | 13.7″ anti-glare, 2176 × 1600 |
| Operating System | Android 13 |
| Battery | 18 000 mAh Li-ion, fast-charge dock |
| Cameras | Front 16 MP / Rear 16 MP |
| Wireless | Dual Wi-Fi 6, Bluetooth |
| VCI | VCMI 2 – 6-in-1 (scope, multimeter, signal gen, CAN tester, J2534, D-PDU) |
| Oscilloscope | 4-channel, 20 MHz bandwidth |
| Multimeter | Voltage, current, resistance |
| Voice Assistant | “MAX” voice navigation |
| Dimensions / Weight | 369 × 211 × 22 mm / 2.1 kg |
Diagnostic & Network Capability
-
Auto-VIN & Auto-Scan with intelligent repair tips
-
Live-Data Fusion – graph & overlay multiple PIDs, store reference traces, split-screen oscilloscope-to-data views
-
Fully supported protocols: DoIP, CAN-FD, J2534, D-PDU and legacy ISO / SAE buses
-
Cloud reporting & Data Manager – store pre- / post-repair reports, photos and tech notes
Included in the Box
-
MaxiSys Ultra S2 tablet
-
VCMI 2 wireless interface
-
Full OBD II cable set
-
Scope probes & multimeter leads
-
Fast-charge docking station
-
Rugged carry case & shoulder strap
-
12 months Autel software updates
Description
Description
Maximise Your Workshop’s Efficiency with Ultra S2
Running a busy workshop means making quick, confident decisions. Ultra S2 gives your technicians the processing power, data visualisation and guided diagnostics they need to slash job times and reduce comebacks. Bigger screen real estate coupled with split-screen data/oscilloscope views lets them pinpoint faults faster—while the AI-driven voice assistant keeps their hands free to test components.
Why Upgrade to Ultra S2?
-
Work faster: Near-instant boot, Wi-Fi 6 downloads and rapid ECU scans.
-
Diagnose deeper: OE-level coding, programming and topology mapping, even on the latest DoIP / CAN-FD platforms.
-
Future-proof your shop: Built-in EV test routines, J2534 pass-thru and 4-channel scope mean you’re ready for whatever drives in.
-
Deliver better customer experience: Generate detailed pre- and post-repair health reports to build trust and justify repairs.
Ready to Transform Your Diagnostic Workflow?
Contact us today for pricing or a live demo and discover how the MaxiSys Ultra S2 can boost productivity, minimise errors and drive profitability in your workshop.
